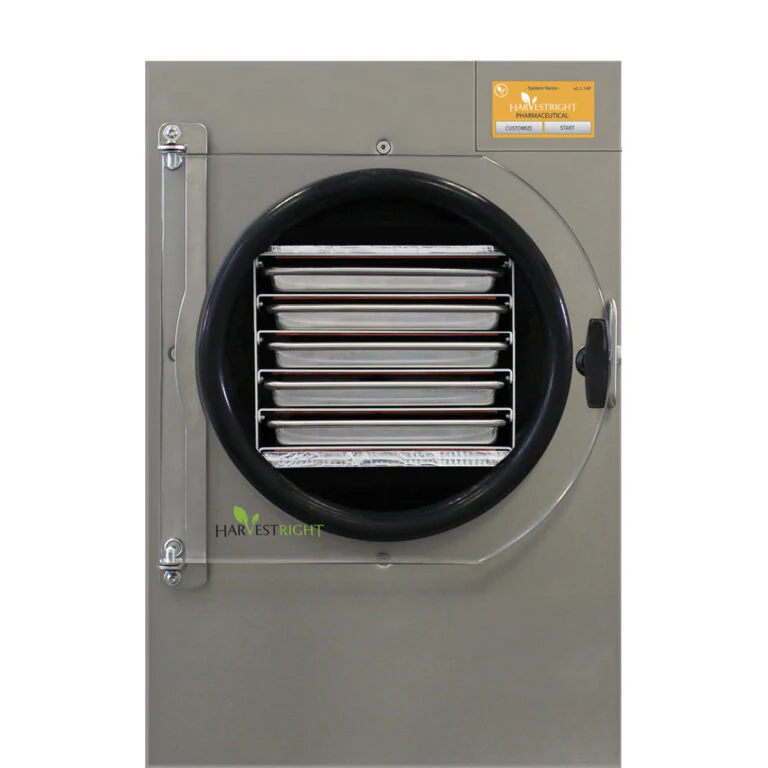

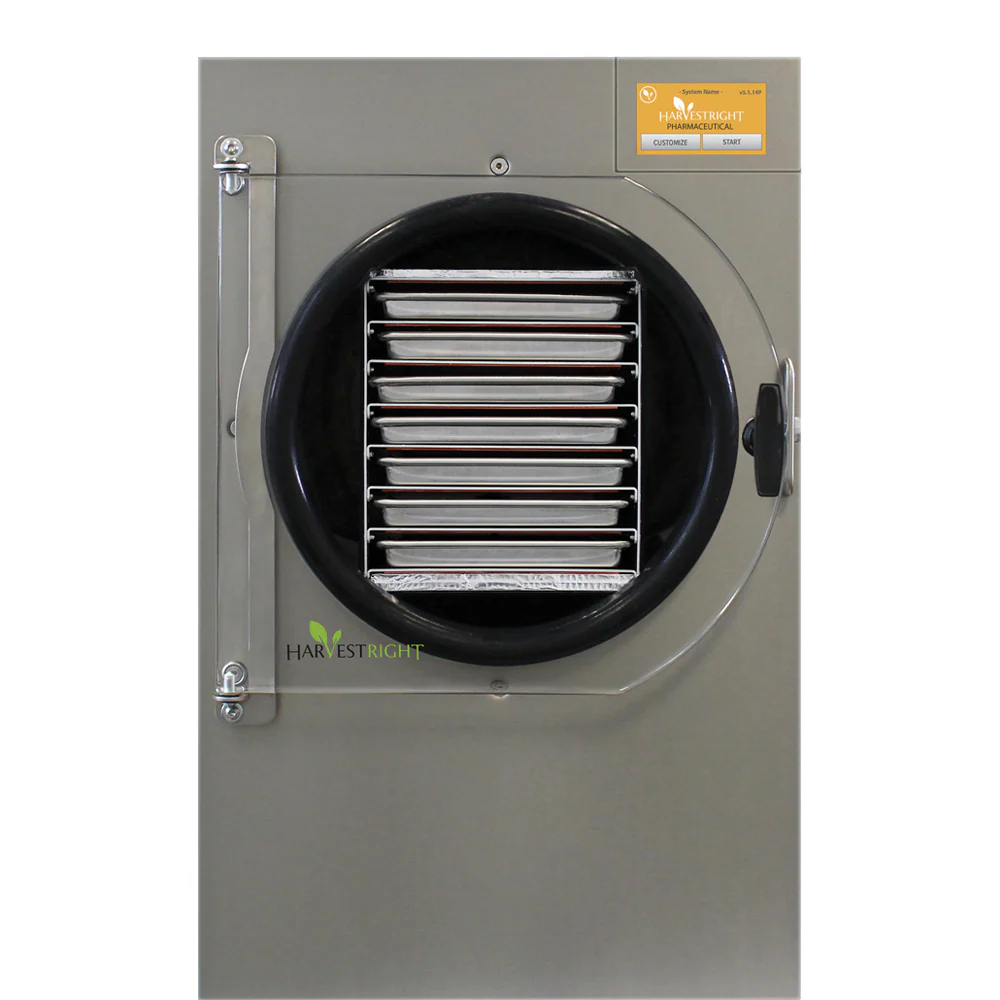

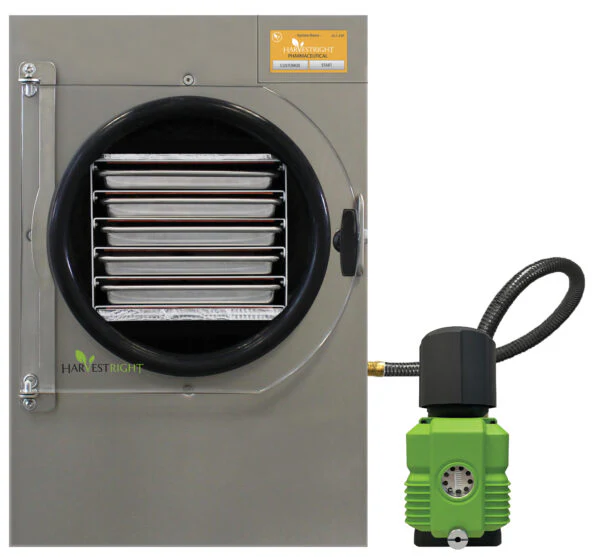

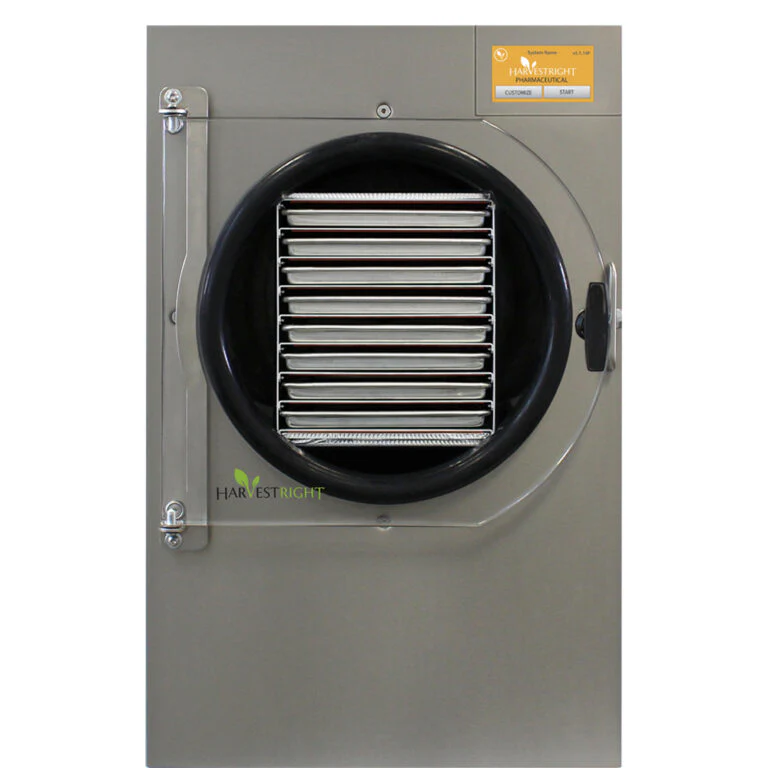

Harvest Right - Pharmaceutical PRO Freeze Dryer - Stainless Steel

Patented technology keeps the product fresh, and preserves the potency, color, shape and nutrition of any organic material. Perfect for freeze drying foods, herbs, oils, medicines, remedies, pharmaceuticals, and compounds.

Please provide a valid phone number at checkout so FedEx can call ahead and schedule your delivery.

---

         Small Kit Includes:

• Commercial Grade Vacuum Pump

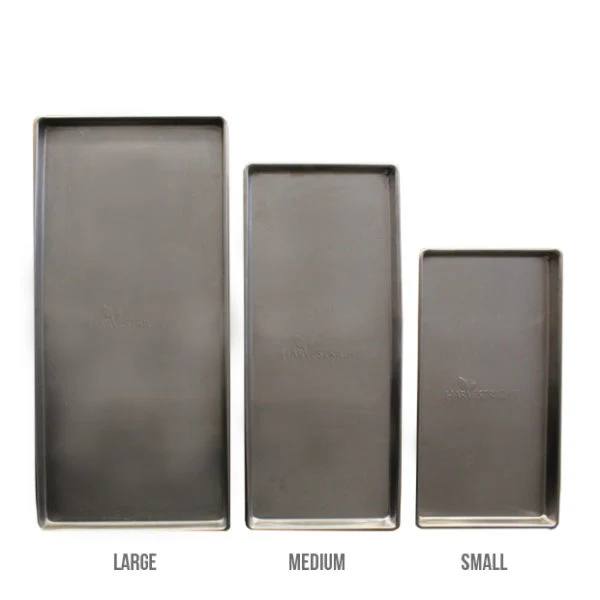

• Five (5) Stainless Steel Trays
• Owner’s Manual
• Power Cord (110 Volt)

         Medium Kit Includes:

• Commercial Grade Vacuum Pump
• Five (7) Stainless Steel Trays
• Owner’s Manual
• Power Cord (110 Volt)

         Large Kit Includes:

• Commercial Grade Vacuum Pump
• Five (8) Stainless Steel Trays
• Owner’s Manual
• Power Cord (110 Volt)

Warranty – 3 year limited warranty
         Dimensions:

• Small - product dimensions: 16.5″ W x 18.5″ D x 25″ H Perfect for a counter top, cart or table -  98 lbs
• Medium - product dimensions: 18″ W x 21.25″ D x 28.5″ H Perfect for a counter top, cart or table - 127 lbs
• Large - product dimensions: 20.25″ W x 23.75″ D x 30.75″ H Perfect for a counter top, cart or table - 150 lbs

         Power Requirements:

• Small & Medium - 110 volt
• Large - 110 volt (NEMA 5-20) outlet. A dedicated 20 amp circuit is required)

---

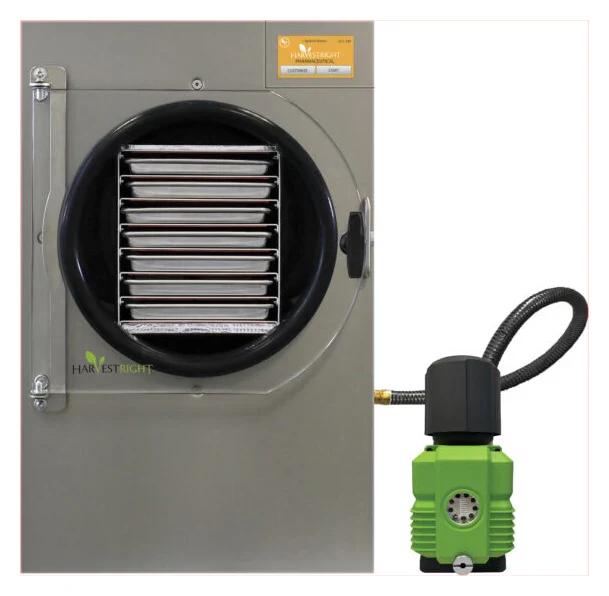

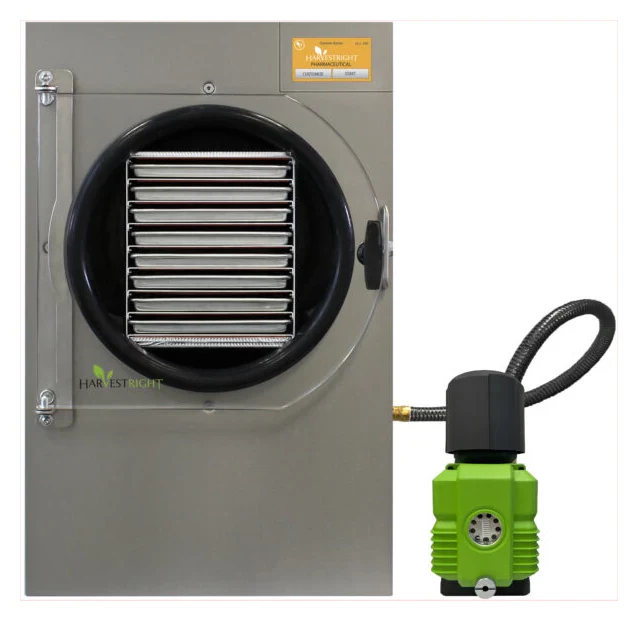

Vacuum Pump
Each vacuum pump has been factory tested to guarantee of 25 microns (25,400 Microns = 1 Inch of Hg) or better, and listed CFM performance.

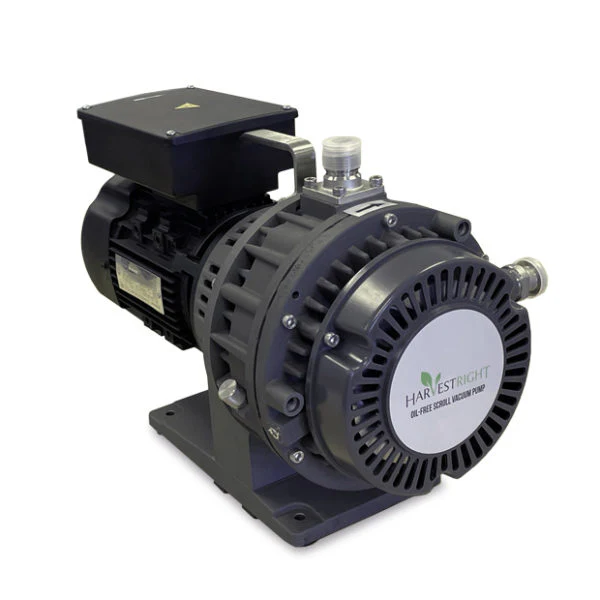

Oil-Free Vacuum Pump Technical Specifications
CFM: 7.2 Motor: 3/4 HP, 1725 RPM Voltage: Standard 115V 60Hz Plug: US 110V Intake Port: 3/4 JIC flare Intake Port: 21 oz (680 cc). Dimensions: 19″ H x 10″ D x 10″ W Weight: 42 lbs

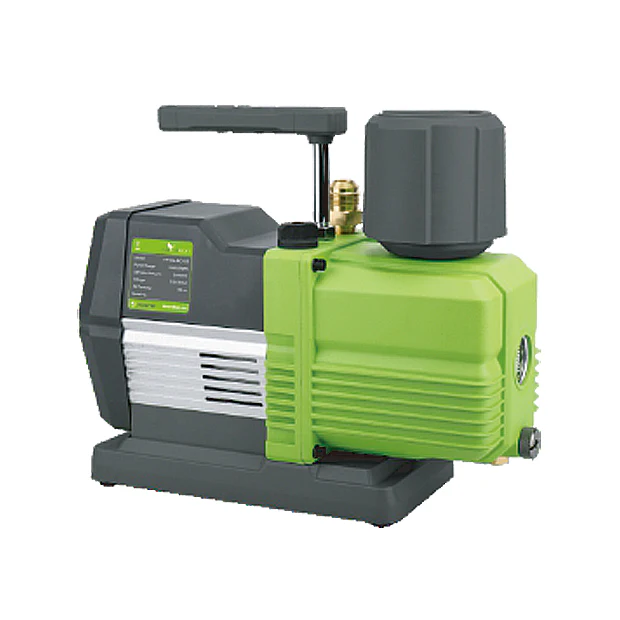

Premier Vacuum Pump Technical Specifications
Oil: Harvest Right Oil, Robinair Premium High Vacuum Pump Oil or JB Industries Black Gold Vacuum Pump Oil Only DC Motor Energy Efficient Voltage: Standard, 115v, 60Hz. Noise: 52 decibels. Dimensions: 16.3″ x 6″ x 12.1″ Weight: 32lbs
Product Comparison
Premier Oil Pump vs Standard Oil Pump
Oil Changes
This new Premier Pump rarely needs to have the oil changed or filtered. The pump has a gas ballast feature that makes it so water does not stay in the oil. Because of this, the oil in the pump will be pristine and clear, even after 30 or more batches. You simply won’t need to change the oil until you have run 25 to 40 batches. Whereas, the oil in the standard vacuum pump needs to be changed and filtered every 4 or 5 batches (when using the new 3/8 inch vacuum hose).
Vacuum Pressure
Under cold and hot conditions the Premier Pump will pull a deeper vacuum than the Standard Pump. Under cold conditions the difference is .05 Pascal for the Premier Pump and .08 Pascal for the Standard Pump. Whereas, under warm conditions the difference is much greater: .05 Pascal for the Industrial Pump and 2.05 Pascal for the Standard Pump.
Hence, the Premier Pump is especially not affected by warm, ambient conditions. When temperatures rise, it will pull a vacuum far better than the Standard Pump. The Premier Pump is just not affected by outside heat. It pulls the same deep vacuum even when it is in a warm environment.
Noise
The Premier Pump is substantially quieter than the Standard Pump, 52 decibels versus 64 decibels. The Premier Pump at 52 decibels is about the same as a refrigerator.
Oil Mist Filter
Both pumps come with an oil mist filter. However, the Premier Pump’s oil mist filter allows for no oil spray at all and it will last much longer.
Power Use
The Premier Pump uses less power than the Standard Pump (187 watts versus 218 watts).
Amperage
Under hot conditions at ultimate vacuum pressure the Standard Pump pulls 2.1 amps while the Premier Pump only pulls 1.7 amps. Hence, the Premier Pump is more efficient.
Weight
The Premier Pump is easier to move around as it weighs 5 pounds less than the Standard Pump (32 lbs. versus 37 lbs.)
Life
The Premier Pump is more durable and will last longer than the Standard Pump.


FREEZE DRYER VIDEOS


Warranty
Full 1 year warranty
Limited 3 year warranty
For full Harvest Right freeze dryer warranty details click here
What type of power does it use?
110 Volt

How loud is a freeze dryer?
The Harvest Right freeze dryer runs at about 65 decibels. Which can be a little noisy for a kitchen. You should expect your freeze dryer to produce noise during the second half of the freeze-drying process when the vacuum pump is running. The beginning phase (during the freeze process) will not be noisy at all. Comparatively, like a dishwasher or washing machine. Because of the noise from a washing machine, homebuilders adjusted and started building laundry rooms to minimize the noise. Harvest Right suggests the same for your freeze dryer. Keep it in your laundry room, a utility room, an extra kitchen/bedroom, or even in your garage.
How hard is it to put oil in my freeze dryer?
It’s simple. Just unscrew the cap on your vacuum pump and pour oil in until it reaches the fill line.
Do I have to drain my oil?
To keep your freeze dryer running properly, simply drain the oil out of the vacuum pump after 20-30 batches. It takes just a few seconds to unscrew the spout and allow the oil to drain into a filter that is provided with the freeze dryer.
The oil used in the vacuum pump is food grade mineral oil. If you spill a little it's easy to wipe up. To refill your vacuum pump simply fill with 3/4 quart of vacuum pump oil.
Does my freeze dryer need a filter?
The freeze dryer itself does not need a filter. However, if you would like to save money on oil, Harvest Right provides a simple oil filter with every freeze dryer. To recycle your oil, simply drain the oil directly from the pump into the filter container and let the filter do the rest. Once the oil has drained into the bottom plastic portion of the filter, you can pour the oil back into your freeze dryer’s vacuum pump and re-use it just as if it were new oil!
Do I need to drain the water from my freeze dryer?
During the process of freeze drying, the water (evaporates) and freezes in the drying chamber.  At the end of the process the freeze dryer has a defrost cycle that changes the frozen water (that was removed from the material you were drying) back into a liquid form. It then drains out of the chamber into a container of your choice. You can simply pour the water into a sink or use it to water your plants.
Is the freeze dryer too heavy for one person to lift?
Depending on the model, the freeze dryers weigh between 60 lbs. and 190 lbs. It is best to have two people available help move your freeze dryer to the location where you want to keep it. You can place the freeze dryer on a rolling cart if you want the freedom to move your freeze dryer around. Otherwise a simple table or counter will suffice.
